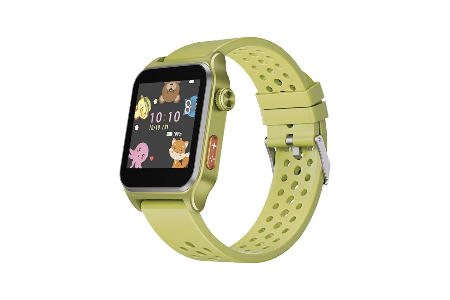

FITVII HM21 Kids Watch User Manual

FITVII HM21 Kids Watch User Manual

The smartwatch features the "Hakuna Matata" logo printed on the bottom. "Hakuna Matata," an ancient African Swahili phrase, translates to "no worries" in English. We have chosen to incorporate this meaningful proverb on the back of the watch, aiming to convey our heartfelt wishes to the children.
Waterproof Disclaimer: The smartwatch avoid worn during hot showers or in saunas to prevent exposure to steam. Please note that any water damage resulting from improper use or failure to follow the instructions will not be covered under our warranty policy.

Power button:

  1. Short press --> light up the screen, longpress --> power off.
  2. Short press while displaying the dial --> Enterthe Multi-function menu.
  3. Short press of the Power button when on anyother interface-->back to the previous page

Game button:

  1. Short press --> light up the Screen.
  2. Short press when the screen is on --> takesyou to the game list.

Touchscreen Gesture:

  1. Swipe down on the watch face --> AccessShortcut Menu

Here, you can view battery life, time, date, and the day of the week and quickly access brightness, games, alarm clock, and settings pages.

You may find daily activities, games, alarms, Sports mode, Sports record, heart rate, sleep, calculator, menu styles, timer, and settings.

  1. Swipe right on the watch face page=>Enter Multi-function menu.

The large icon function menu can be switched to become a four-grid menu(Swipe right on the watch face-->Style-->Lay-out-->Big icon or Four Grids).

3, Swipe left on the watch face=>Access the Large Icon Menu.

Strap Replacement:

Push the bead along the small track on the strap to one side with your thumbnail to release the

strap.

Charging Instructions:

To charge your smartwatch, connect it to the provided charging cable and plug the other end into a USB port on your computer or a standard 5V phone charger. The charging process takes approximately 150 minutes to reach full charge.





Main Features:

Time Settings:

Set the year, month, and day of the smartwatch before using the dial for the first time. You can also go to Settings->SYSTEM->Set Time.

Daily Activity:

You can view your daily steps, calories burned and distance walked in ‘Daily Activity’ on your

watch. The data of the past 24 hours will be saved and reset from 00:00 each day to ensure accurate tracking of your daily activities.

Games:

The smartwatch offers five games for your entertainment and relaxation. jigsaw puzzle, bird, airplane battle, card game, and basketball.

Alarm:

Swipe right on the watch face-->Alarms-->Click  ‘+’ to add an alarm(Note: you can click on an existing alarm to re-edit or delete it)-->Set the alarm time--> Choose the days of the week you

want the alarm clock to work on-->Choose one of the 15 labels to name the alarm clock.

When the alarm time is reached, the smartwatch will alert you with a vibration.

Exercise Records:

Swipe right on the watch face-->Exercise Records-->There are only 8 Records you can

see.

Sports:

Swipe right on the watch face-->Sports-->6 Sports Modes for your choice.

Including outdoor running, walking, hiking, cycling, basketball, and soccer. When engaging in any of these sports, the smartwatch will automatically save your sports data in the exercise records.



Heart Rate Monitor:

Swipe right on the watch face-->Heart Rate-->Keep the correct measurement posture

when wearing the smartwatch--> The result will come out in about 25 seconds.

Sleep Monitor:

Swipe right on the watch face-->Sleep-->You can view your sleep data from 9:00 pm to 9:00 am. Including sleep duration, wake-up time, deep sleep time, and light sleep time.

Style:

Customize the large icon page for functions with big icons or a four-grid layout, and choose from two themes of ‘the main function menu’.

Calculator:

Use the built-in calculator for simple calculations.



Timer:

Swipe right on the watch face-->Timer-->The pattern on the left is a stopwatch, and the pattern on the right is a timer(You can set countdowns for 1 minute, 5 minutes, 10 minutes, or customize your time. and the smartwatch will remind you with a vibration when the countdown is completed.).

Settings:

Access the system settings for various configurations.

Watch Face Selection:

Long-press on the watch face to switch between 6 designs. You can also access Settings--> Screen Display --> Change Dial-->To change the watch face.

Brightness Adjustment:

Enter Settings-->Screen Display-->Brightness-->To adjust the screen brightness to levels 1, 2, or 3, according to your preference.

Screen Time:

Enter Settings-->Screen Display-->Screen Time-->You can set the screen time to 5s, 10s, 15s, or 20s. The smartwatch's screen will turn off after reaching the screen-off time you set.

Raise-to-Wake:

Enter Settings-->Screen Display-->Turn Wrist Wake. After enabling this feature, the smartwatch

will turn on the screen automatically when you raise your wrist.

Vibration Intensity:

Enter Settings-->Vibration-->The smartwatch allows you to set the vibration intensity to levels 1, 2, or 3, with level 3 being the strongest. The intensity of the pop-up reminders will match your

chosen setting.

About:

Enter Settings-->System-->Version. You can access the watch’s Bluetooth name, software version, and UI version.

Factory Reset:

Enter Settings-->System-->Clicking on " Reset" will erase all data from the smartwatch. Please exercise caution when using this function.

Shut Down:

Enter Settings-->System-->Clicking on ‘shut down’ to turn off the smartwatch.

Charging Battery Icon:

When the smartwatch's battery is below 10%, a low battery prompt will pop up. When plugging the smartwatch into the charger will display a charging interface and a fully charged interface.

Warranty Statement:

Normally, starting from the date of purchase. If there are any quality issues caused by manufacturing, materials, or design reasons, the mainboard is covered by a one-year free warranty, and the battery and charger are covered by a six-month warranty.

2.Failures caused by users as following do not enjoy a free warranty:

(1)Damage resulting from unauthorized disassembly or modification of the smartwatch.

(2)Damage caused by accidental drops during use.

(3)Any damage caused by human factors or third-party negligence or misuse (such as water in the host, external shock crack, damage to the peripheral parts of the scratch, etc.) is not covered by the warranty.

3.Enjoy a free warranty period of 180 days with your smartwatch. To request warranty service,

please provide the order number and send it to our product customer service email address: support@fitvii.com. This allows our dedicated customer service team to quickly verify the product model and activate the warranty for you.

Rest assured that we are committed to efficiently resolving any product-related issues you may encounter.
