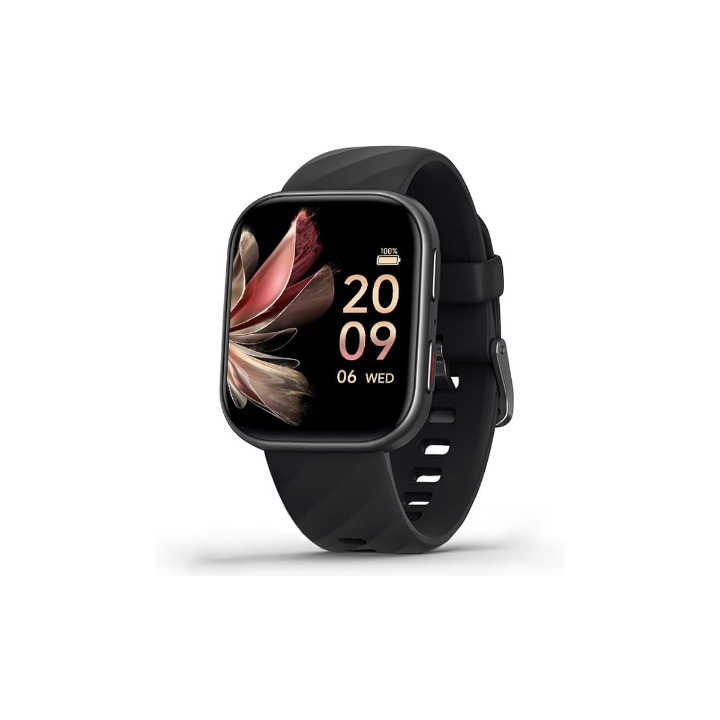

FITVII HM57 Smart Watch Manual

FITVII HM57 Smart Watch Manual

HM57 Fitness Tracker User Manual



How to charge the smartwatch?
(Power adapter not included)
Plug the USB cable into the power adapter
Plug the power adapter into a power outlet Place the charger on the magnetic charging point of your watch.
The screen will show the charging progress When the watch is charged.
Remove the charger when the battery is fully charged.

How to turn on/off the smart watch?

Power on
Long press the button above for a few seconds to turn on the watch
Power off
Long press the button above for a few seconds to select close, restart, or cancel


How to use the touch screen?
Power Button
Short press the button to brighten the screen Press the button again:
1. enter the main menu. 2. return to the main interface.


    Touch Screen
    The screen shows the timing.
    Swipe right to the Main menu.
    Swipe left to Main functions.
    Swipe up to view Message Notifications.
    Swipe down to access the Quick Settings.

    How to change the Language?

    1. Please turn on your watch and slide down to the control panel
    1. Select Settings⚙ —the “gear” icon on the lower left corner
    1. Slide to find the letter “EN” icon and you can change the language.

    How to download and login to the FitCloudPro app?

    1.Check your smartphone compatibility: Ensure your smartphone meets the following requirements:

    Android 6.0 and iOS 10 and above. The smartphone must also be connected to mobile data or Wi-Fi.

    2. Download the FitCloudPro App: Please search for the “FitCloudPro” APP in the APP Store/ Google Play to download.

    Or scan the OR code provided below. This will lead you directly to the FitCloudPro app download page.

    3.Create your APP account: Open the FitCloudPro app and tap "Join Us" to create a new account.

    Note: To calculate your steps, walking  and calorie burning, please fill in your primary body information correctly







    How to connect to your smart watch?



    Please open the FitCloudPro=>Tap “Device”=>click “+Bind Device”or“Add Peripheral Now”=>find your device to connect.

    After connection, the App will pop up "Allow watch to receive notifications from your phone", please click 'Allow", If not, the watch will not receive message notifications.





    How to change the watch unit(Mi/Km;℉/℃; KG/POUNDS)?

    Open the FitCloudPro App--> Me --> Units -->Set units for distance, weight or temperature


    Allow notifications:

    Go to the FitCloudPro app---Device---Push Notifications---Turn on the switch of the app you need to receive notifications. Please don’t forget to allow the notification permission of the phone.

    After connection, the App will pop up "Allow watch to receive notifications from your phone", please click " Allow". If not, the watch will not receive message notifications.

    How to disconnect the Bluetooth?
    You can open your phone's Bluetooth settings, select your watch's Bluetooth name, and click "Ignore this device".



    How to use smart watch functions?

    Weather report

    Please open FitCloudPro=>Device=>switch on the Weather reports=>allow the prompt for Location permission

    If the location requirement for the App does not pop up, please set up manually on the phone System.

    iOS Example: Settings=>locate the “FitCloudPro” application=>choose the location info for FitCloudPro based on your needs=>select “While Using the App” or “Always” to ensure that the app shares weather information with the phone.



    Audio Settings
    1. Swipe down on the watch screen to enter the control interface.
    2. Tap the call icon to open call audio and media audio settings. Enabling call audio allows you to make calls and use the voice assistant function through the watch, but the watch must remain connected to the phone.
    Enabling media audio allows the watch to sync all audio from your phone, such as music and ringtones.
    Note: If you want to use the Find My Phone feature, please turn off Media audio.

    This will allow the phone to play a notification sound.

    Sport Mode
    Press the button on the lower right side of the watch to quickly enter the sports mode selection interface.

    You can add one sport modes from FitCloudPro APP to the Watch: Go to the FitCloudPro APP --- Device --- Sports Push ---select the sports you want.

    Heart Rate Monitor
    Supports 24/7 heart rate tracking.
    To turn on FitCloudPro APP -- Device--Automatic Health Monitoring--Switch on Supplement: The more health monitoring functions are enabled, the faster the power consumption will be. Please turn on the functions according to your own needs.

    To measure your real time heart rate, go to the heart rate interface on the watch and wait for about half a minute for the measurement.

    Note: Please make sure your watch is firmly attached to your wrist, and your arm is stationary during the measurement.

    Blood Oxygen monitor
    Support for viewing the highest and lowest blood oxygen of the day.
    To measure your real time blood oxygen, enter the "Blood Oxygen" screen on the watch and wait for about one minute for the measurement results to appear.
    Note: Please make sure your watch is firmly attached to your wrist and your arm is stationary during the measurement.

    Here is the way to find the BP or BO function:

    Please open your watch>short-press the upper button to enter the menu interface>>find and tap the "Blood pressure" icon, and wait a moment for the measurement to finish.


    Blood Pressure monitor
    Supports 24/7 Blood Pressure tracking. To turn on 24/7 Blood Pressure monitor feature: Go to FitCloudPro APP -- Device--Automatic Health Monitoring--Switch on
    Supplement: The more health monitoring functions are enabled, the faster the power consumption will be. Please turn on the functions according to your own needs.
    To measure your real time Blood Pressure, go to the "Blood Pressure" interface on the watch and wait for about half a minute for the measurement.

    Note: This product is not an ECG or a professional medical device, and none of the above functions can be used as a reference for any medical data.




    Sleep Tracking
    Support to view your recent sleep records and different stages of sleep status. To measure sleep data, wear the watch tightly when you fall asleep, and the device will recognize that you are in sleeping automatically.

    Breath Training
    This function can helps you to adjust the rhythm of your breathing. You can choose from 3 speeds (fast, Medium and Slow). Please enter the "Breathing Training" on your watch, select your time and speed, and click Start.

    Female Function
    This function has three modes, the menstrual function, the pregnancy preparation function, and the pregnancy function, you can record and project the time to help you better understand the different time periods.
    Note: This feature can only be turned on when the FitCloudPro app account gender is female.


    Watch Screen adjustment
    Swipe down the watch screen to enter the control panel, and click the gear icon in the lower left corner to enter the settings interface. Find the "Screen Display" function. In this interface you can adjust the screen brightness and screen on duration.



    Waterproof instructions
    Waterproof Rating: IP67
    The waterproof performance of this product is not permanently effective, may be weakened with the use of time.
    Support in hand washing, rain and other short time use, but does not support hot water shower, diving, surfing.

    The watch is not water resistant to seawater, acidic and alkaline solutions, chemical reagents, and other liquids with erosive power.

    If you have any questions, please feel free to contact us via email: support@fitvii.com
